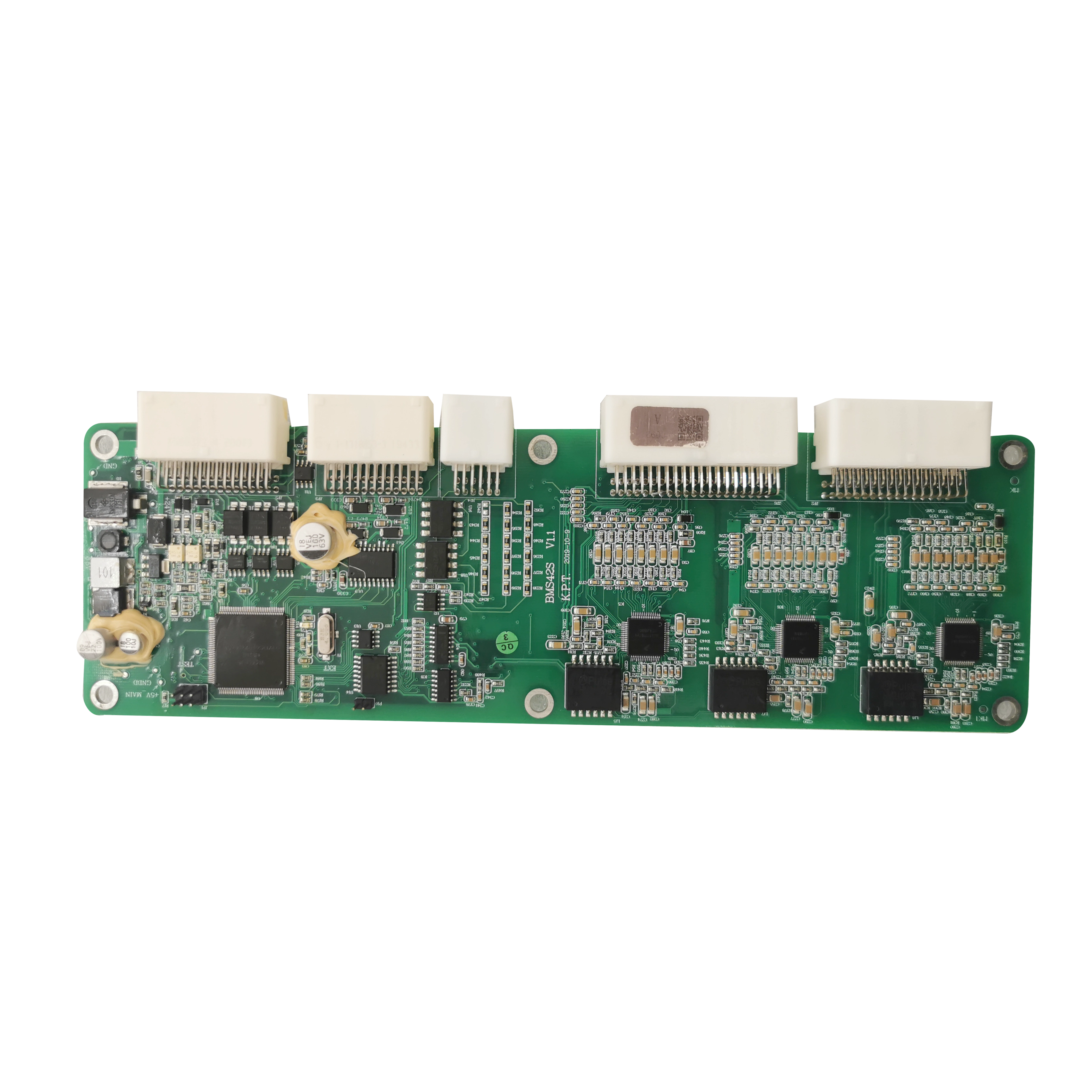

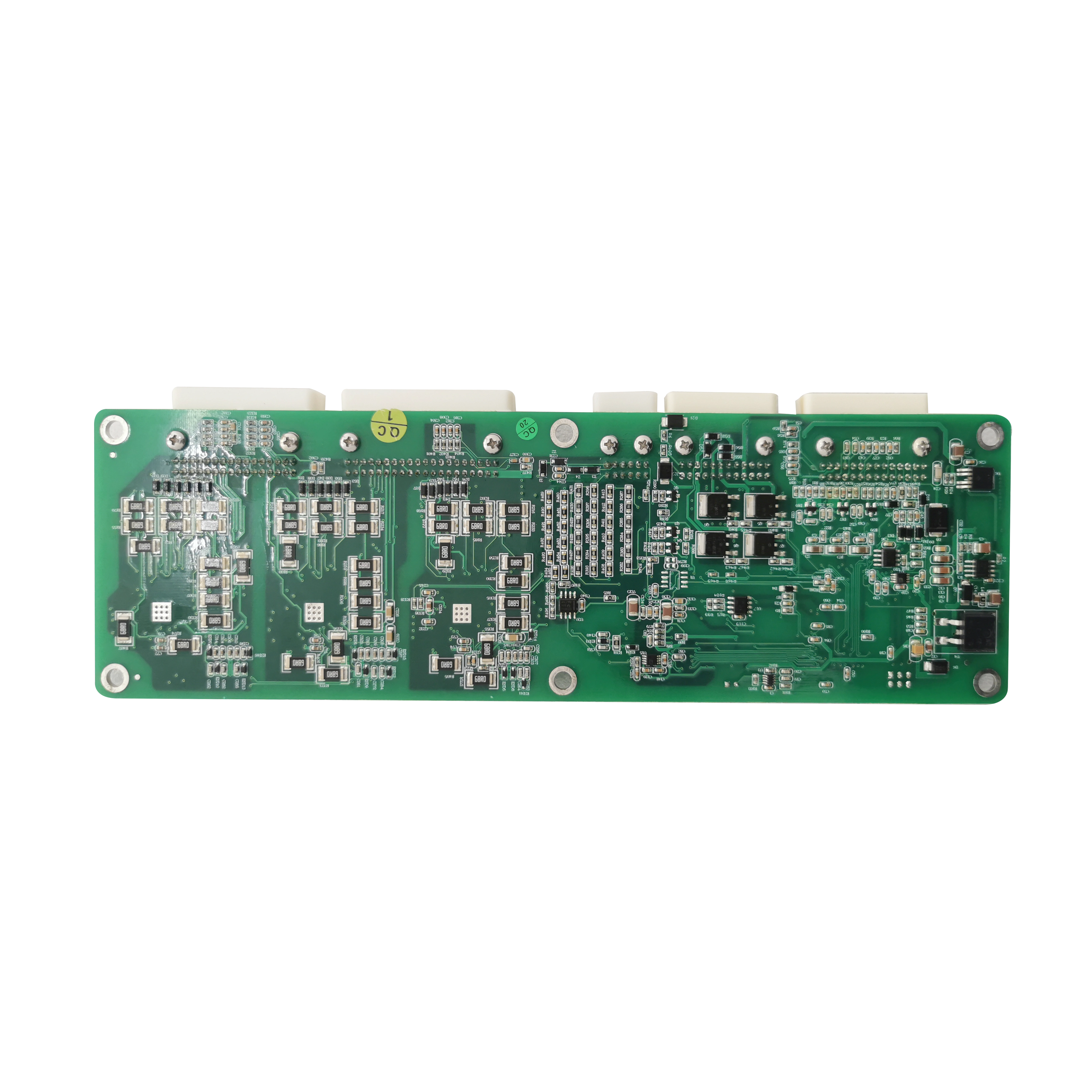

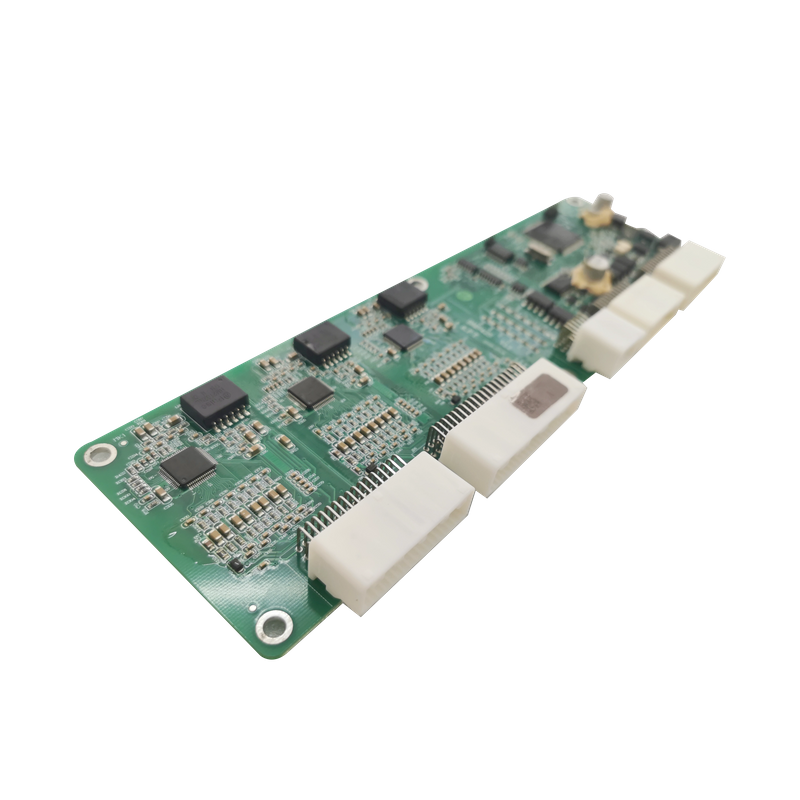

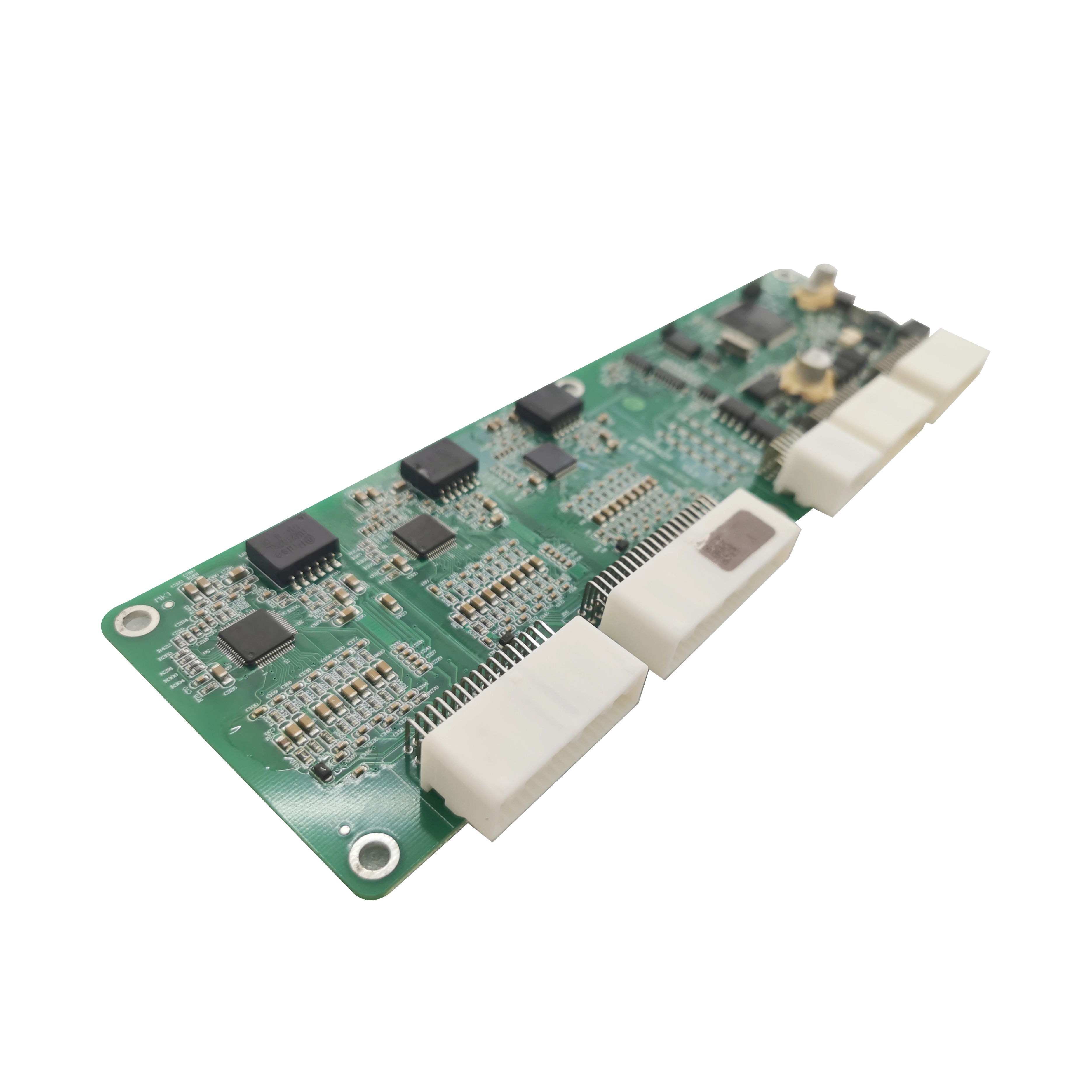

HIGH-END CUSTOMIZED 16S BMS FOR ELECTRIC VEHICLES
The KPT battery management system series covers a variety of high-quality BMS products such as 8S, 12S, 14S, 20S, 24S, 42S, and 56S.
●Support 12v-90v power supply.
●Support CAN, RS485, GPRS communication.
●Flexibly applicate in new energy vehicles, special vehicles, drones, AGV, energy storage and other fields.
BMS SPECIFICATIONS
Items | Parameters | Items | Parameters |
Module working voltage | 9V-36V(power supply) | Insulation detection | None |
Battery series | 42S | National standard charging | Available |
Temperature numbers | 2 NTC | Slow charging | Available |
Battery pack temperature acquisition range | -40℃~125℃ NTC | External communication interface | 2 channels, CAN1 -vehicle;CAN2-charging |
Balancing mode | Passive balance | High and low sides | 4 channels, 4 channels high sides |
Balancing current | 100mA | CAN communication | 3 channels |
Current sampling | ±500A Hall sensor | RS485 communication | 1 channel |
Current detection accuracy | ≤1%FSR | Dimension | 290*91.5*25mm |
SOC precision | ≤5% |
Excellent applications for electric forklift, golf-carts, energy storage system.
Protective functions
Anti-short circuit, anti-reverse function.
Low battery capacity warning function.
Communication anti-theft protection function.
Telemetry, remote signaling, remote control, remote adjustment.
Charge and discharge voltage protection.
Charge and discharge overcurrent protection.
Abnormal temperature protection.
BMS hardware failure.
Specifically include: MOS failure, current detection failure, AFE communication failure, ADC sampling failure, and sampling harness connection failure. At this time, BMS will try to cut off all charging and discharging channels to avoid dangerous accidents.
